Description

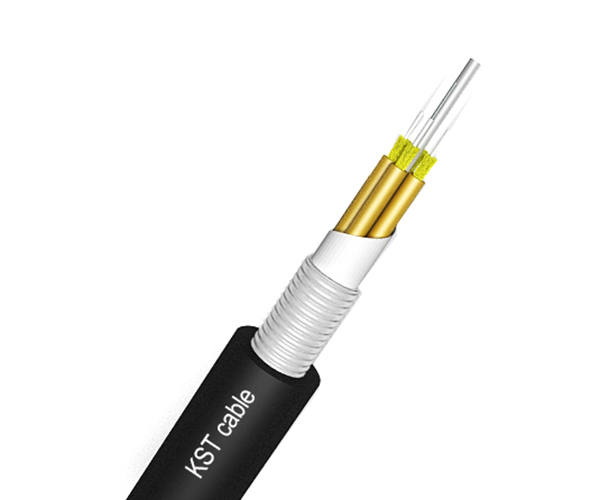

Water proof-cable
| Application： | |||
| ☆.Adopted to Outdoor distribution. | |||
| ☆.Connected to connectors of various models interconnect. | |||
| ☆.Can be installed conveniently and operated simply. |
| Characteristics： | |||||
| ☆.More single-core cable design. | |||||
| ☆.Steel tape armoured. | |||||
| ☆.Waterproof and applicable scurviness environment. |
| Technical Parameters: | ||||||||||
| Cable Count | Out sheath Diameter |
Weight | Minimum allowable Tensile Strength (N) |
minimum allowable Crush Load （N/100mm) |
Minimum Bending Radius (MM) |
Storage temperature |
||||
| （MM) | （KG) | short term | long term | short term | long term | short term | long term | （℃） | ||
| 2 | 10.5 | 155.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |
| 4 | 10.5 | 155.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |
| 6 | 11.5 | 185.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |
| 12 | 12.5 | 225.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |
| Optical Characteristics | ||||||||||
| Fiber Sort | Multimode | G.651 | A1a:50/125 | Graded-index fiber | ||||||
| A1b:62.5/125 | ||||||||||
| Singlemode | G.652(A、B、C、D） | B1.1:Conventional fiber | ||||||||
| G.653 | B2: Zero dispersion shifted | |||||||||
| G.654 | B1.2 :Cut-off wavelength shifted | |||||||||
| G.655 | B4: Main technical data for positive dispersion shifted single-mode fiber |
|||||||||
–
–
