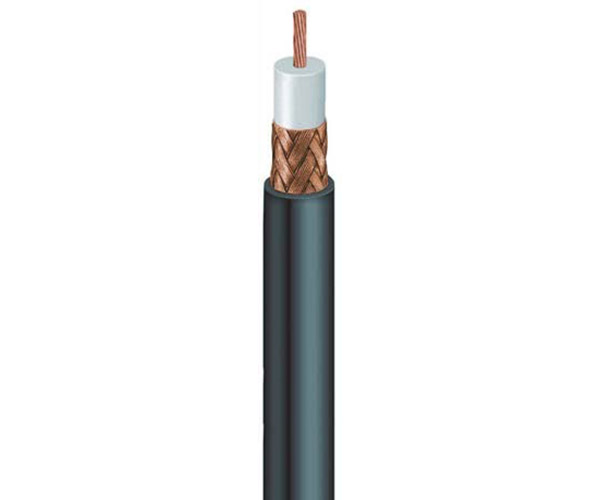

RG213/U
1) Description
7X0.723mm strand bare copper center conductor;
solid polyethylene dielectric; shield of tinned copper braid wire; jacket
of polyvinylchoride. Nominal O.D. 10.30mm.
2) Physical Dimensions
Center Conductor:———-7X0.723+0.01mm Tinned Copper
Dielectric:——————–7.24+0.05mm Solid PE
Braid Coverage:————-96%X24X7X0.16+0.005mm Bare Copper
Jacket:————————10.30+0.05mm PVC
3) Mechanical Characteristics
Operating Temperature Range:————––20℃ To +75℃
Max. Recommended Pulling Tension: —–180 lbs
Min. Bend Radius (Install):——————-5 in.
4) Suitability
Suitability – Indoor/Outdoor:——————YES/YES
Suitability – Aerial/Burial:———————-NO/NO
5) Electrical Characteristics
Sparker Test:—————-4000 VAC
Impedance:——————50+2Ω
Capacitance:—————-30.8 pF/ft
Velocity of Propagation:—66%
6) Attenuation
| Attenuation | [@68o F. (20o C.)] |
| Frequency (MHz) | Nom. (dB/100 ft.) |
| 1 | 0.17 |
| 10 | 0.55 |
| 50 | 1.3 |
| 100 | 1.9 |
| 200 | 2.7 |
| 400 | 4.1 |
| 700 | 6.5 |
| 900 | 7.6 |
| 1000 | 8.0 |
| 4000 | 21.5 |
7) Approval:
NEC/(UL) Specification: CMR CEC/C(UL) Specification: CMR
EU CE Mark: YES EU RoHS Compliance: YES
–
–
