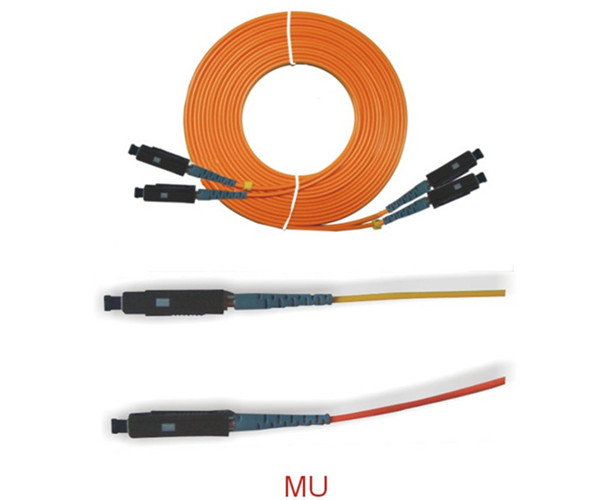

MU Patch cord

INTRODUCTION

                  FEATURES

Armored F0 Patch Cord can be deployed directly in CO

and different harsh environment, without additional

tube for protection,save space, reduce construction cost,

cost, and make the maintenance more conveniently.

Furthermore,the stainless steel tube prevents optic fiber

from damage, which improves security and stability of the system.

Compliant with:ANSI,Bellcore,TIA/EIA-568A

IEC/ISO 11801 Strandards

Singlemode and Multimode Cable

Simplex and Duplex Cable

PC Ferrule With 20mm Radius ,Fast Polishing

Diameter :3.0mm

SPECIFICATIONS

APPLICATIONS

Insertion Loss:≤0.30dB

Optic-fiber Communication netword

Return Loss:(Singlemode)

Fiber broad brand access netword

≥45dB pc Polish

≥50dB upc Polish

Fiber CATV

Fiber instrument
