Description

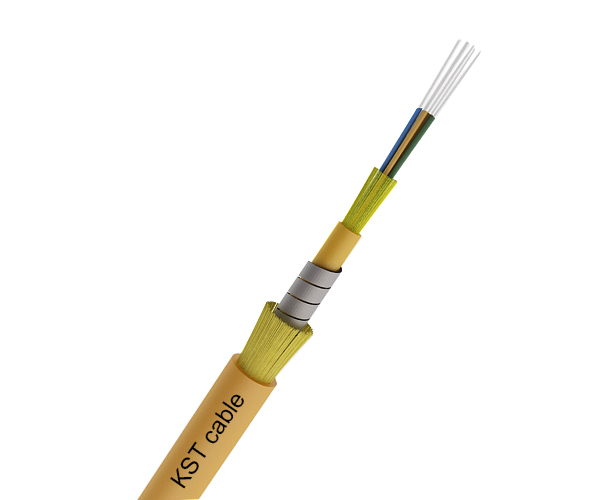

Indoor Loose tube Armored Fiber Optical Cable
| Application： | ||||
| ☆.For indoor distribution. | ||||
| ☆.As pigtail of communication equipment. | ||||
| ☆.Suitable for communication equipment served. | ||||
| ☆.Suitable for floor connection. |
| Characteristics： | |||||
| ☆.250um color coded fiber, | |||||
| ☆.Hight strength kevlar yarn member. | |||||
| ☆.Saft. Easy to strip. | |||||
| ☆.Steel armored flexble tube.increase the cable’s twist | |||||
| ☆. PVC LSZH OFNP Sheath. |
| Technical Parameters: | |||||||||||
| Cable Count | Outside Diameter |
Fiber Diameter |
Weight | Minimum allowable Tensile Strength (N) |
minimum allowable Crush Load （N/100mm) |
Minimum Bending Radius (MM) |
Storage temperature |
||||
| （MM) | （um) | （KG) | short term | long term | short term | long term | short term | long term | （℃） | ||
| 4 | 5.5~6.0 | 250 | 35.00 | 600 | 200 | 600 | 200 | 20D | 10D | -20+60 | |
| 6 | 5.5~6.0 | 250 | 35.00 | 600 | 200 | 600 | 200 | 20D | 10D | -20+60 | |
| 8 | 5.5~6.0 | 250 | 35.00 | 600 | 200 | 600 | 200 | 20D | 10D | -20+60 | |
| 12 | 5.5~6.0 | 250 | 35.00 | 600 | 200 | 600 | 200 | 20D | 10D | -20+60 | |
| 24 | 5.5~6.0 | 250 | 35.00 | 600 | 200 | 600 | 200 | 20D | 10D | -20+60 | |
| Optical Characteristics | |||||||||||
| Fiber Sort | Multimode | G.651 | A1a:50/125 | Graded-index fiber | |||||||
| A1b:62.5/125 | |||||||||||
| Singlemode | G.652(A、B、C、D） | B1.1:Conventional fiber | |||||||||
| G.653 | B2: Zero dispersion shifted | ||||||||||
| G.654 | B1.2 :Cut-off wavelength shifted | ||||||||||
| G.655 | B4: Main technical data for positive dispersion shifted single-mode fiber |
||||||||||
–
–
