Description

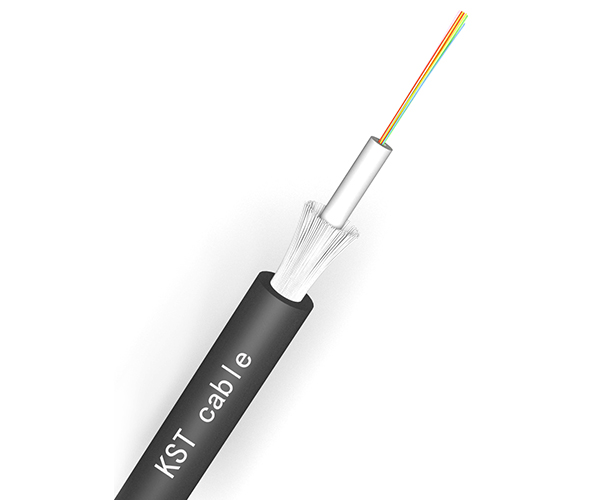

Central Loose tube Indoor/outdoor Optical Cable
| Application： | |||
| ☆.Adopted to indoor or outdoor distribution. | |||
| ☆.Small cable size , lightweight. | |||
| ☆.With excellent waterproofing performance. |
| Characteristics： | |||||
| ☆.Filler protect bube fiber . | |||||
| ☆.E-glass member potentiate. | |||||
| ☆.Fiber Counl:2~12 |
| Technical Parameters: | ||||||||||
| Cable Count | Outside Diameter |
Weight | Minimum allowable Tensile Strength (N) |
minimum allowable Crush Load （N/100mm) |
Minimum Bending Radius (MM) |
Storage temperature |
||||
| （MM) | （KG) | short term | long term | short term | long term | short term | long term | （℃） | ||
| 02 | 6.0 | 45.00 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 | |
| 04 | 6.0 | 45.00 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 | |
| 06 | 6.0 | 45.00 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 | |
| 08 | 6.0 | 45.00 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 | |
| 10 | 6.0 | 45.00 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 | |
| 12 | 6.0 | 45.00 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 | |
| Optical Characteristics | ||||||||||
| Fiber Sort | Multimode | A1a:50/125 | Graded-index fiber | |||||||
| A1b:62.5/125 | ||||||||||
| Singlemode | G.652(A、B、C、D） | B1.1:Conventional fiber | ||||||||
| G.653 | B2: Zero dispersion shifted | |||||||||
| G.654 | B1.2 :Cut-off wavelength shifted | |||||||||
| G.655 | B4: Main technical data for positive dispersion shifted single-mode fiber |
|||||||||
–
–
