Description

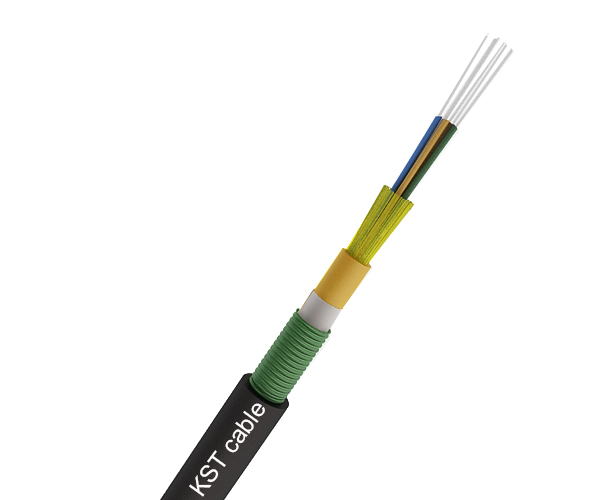

Distribution Tight Buffer Armored Fiber Optical Cable
| Application： | ||||
| ☆.Adopted to indoor and Outdoor distribution. | ||||
| ☆.As pigtail of communication equipment. | ||||
| ☆.Suitable for communication equipment served. | ||||
| ☆.Suitable for floor connection. |
| Characteristics： | |||||
| ☆.High strength kevlar yarn member. | |||||
| ☆.More tight buffered design. | |||||
| ☆.Round construction. | |||||
| ☆.Soft. Easy to strip. | |||||
| ☆.Steel armored flexble tube.increase the cable’s twist |
| Technical Parameters: | |||||||||||
| Cable Count | Outside Diameter |
Tight buffer Diameter |
Weight | Minimum allowable Tensile Strength (N) |
minimum allowable Crush Load （N/100mm) |
Minimum Bending Radius (MM) |
Storage temperature |
||||
| （MM) | （MM) | （KG) | short term | long term | short term | long term | short term | long term | （℃） | ||
| 6 | 10.0 | 0.9 | 76.00 | 1500 | 600 | 1000 | 200 | 20D | 10D | -20+60 | |
| Optical Characteristics | |||||||||||
| Fiber Sort | Multimode | G.651 | A1a:50/125 | Graded-index fiber | |||||||
| A1b:62.5/125 | |||||||||||
| Singlemode | G.652(A、B、C、D） | B1.1:Conventional fiber | |||||||||
| G.653 | B2: Zero dispersion shifted | ||||||||||
| G.654 | B1.2 :Cut-off wavelength shifted | ||||||||||
| G.655 | B4: Main technical data for positive dispersion shifted single-mode fiber |
||||||||||
–
–
