Description

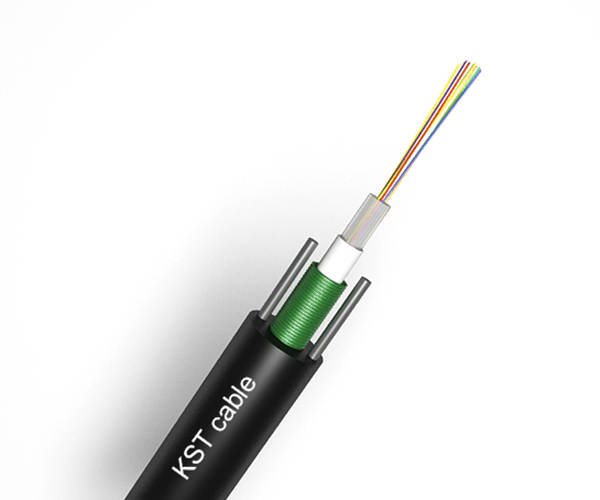

Central Loose Tube Out Cable（GYXTW）
| Application： | |||
| ☆.Adopted to Outdoor distribution. | |||
| ☆.Suitable for aerial .pipeline laying method. | |||
| ☆.Long distance and local area network communication. |
| Characteristics： | |||||
| ☆.Steel-wire parallel member.filler protect tube fiber steel tape amored. | |||||
| ☆.Excellent mechanical and environmental performance. | |||||
| ☆.compact structure.light weight. | |||||
| ☆.can be installed conveniently and operated simply. |
| Technical Parameters: | ||||||||||
| Cable Count | Out sheath Diameter |
Weight | Minimum allowable Tensile Strength (N) |
minimum allowable Crush Load （N/100mm) |
Minimum Bending Radius (MM) |
Storage temperature |
||||
| （MM) | （KG) | short term | long term | short term | long term | short term | long term | （℃） | ||
| 2 | 8.3 | 78.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |
| 4 | 8.3 | 78.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |
| 6 | 8.3 | 78.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |
| 8 | 8.3 | 78.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |
| 10 | 8.3 | 78.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |
| 12 | 8.3 | 78.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |
| Denominate: | ||||||||||
 |
GY: | Outdoor Cable | ||||||||
| X: | Central bundled | |||||||||
| T: | Filling Compound | |||||||||
| W: | Steel-wire +Out sheath | |||||||||
| Optical Characteristics | ||||||||||
| Fiber Sort | Multimode | G.651 | A1a:50/125 | Graded-index fiber | ||||||
| A1b:62.5/125 | ||||||||||
| Singlemode | G.652(A、B、C、D） | B1.1:Conventional fiber | ||||||||
| G.653 | B2: Zero dispersion shifted | |||||||||
| G.654 | B1.2 :Cut-off wavelength shifted | |||||||||
| G.655 | B4: Main technical data for positive dispersion shifted single-mode fiber |
|||||||||
–
–
