Description

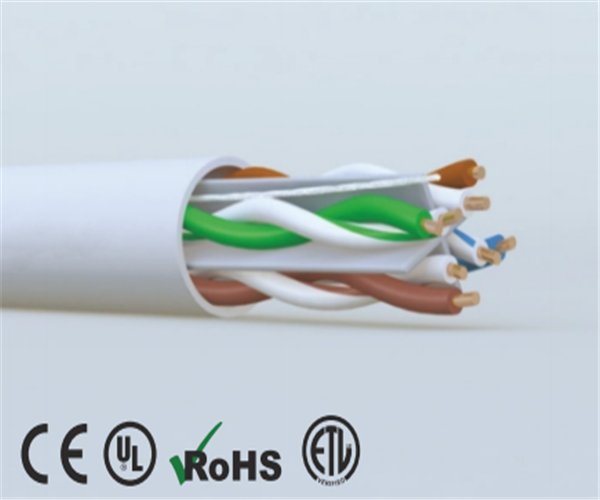

U/UTP 4Pairs cablecategory 6PVC Sheath
| Revision Record | Approval Record | |||||||||||||
| Revision Status | Modify method | Modify No. | Modify Page | Effective Date | Modifier/ Date | Distribute No. | ||||||||
| Prepare | ||||||||||||||
| Review | ||||||||||||||
| Approve | ||||||||||||||
| Content of the Data Sheet | ||||||||||||||
| Sheath Printing | It will be printed as customer’s requirement with batch produce. | |||||||||||||
| Category | U/UTP CAT64PPVC |
WhiteBlue /Blue WhiteOrange /Orange
Sheath Seperator Ripcord
WhiteBrown /Brown WhiteGreen /Green |
||||||||||||
| Test Standard | ISO/IEC11801、TIA568C.2 YD/T10192001 | |||||||||||||
|
Conductor |
Material | SolidBare Copper | ||||||||||||
|
Nom.O.D.(mm) |
0.570 |
up | +0.005 | |||||||||||
| down | 0.005 | |||||||||||||
|
Insulation |
Material | HDPE | ||||||||||||
| Diameter | 1.02±0.03mm | |||||||||||||
| Thickness | 0.55±0.05 mm | Technical Performance (100m):
Frequency RL ATT(20℃) NEXT PHASE DELAY (MHz) ≥dB ≤dB ≥dB ≤ns 1 20.0 2.03 74.3 570.00 4.0 23.0 3.78 65.3 552.00 8.0 24.5 5.32 60.8 546.73 10.0 25.0 5.95 59.3 545.38 16.0 25.0 7.55 56.2 543.00 20.0 25.0 8.47 54.8 542.05 25.0 24.3 9.51 53.3 541.20 31.25 23.6 10.67 51.9 540.44 62.5 21.5 15.38 47.7 538.55 100 20.1 19.80 44.3 537.60 200 18.0 28.98 39.8 536.54 250 17.3 32.85 38.3 536.27
Frequency PSNEXT ELFEXT PSELFEXT (MHz) ≥dB ≥dB ≥dB 1 72.3 67.8 64.8 4 63.3 55.8 52.8 8 58.8 49.7 46.7 10 57.3 47.8 44.8 16 54.2 43.7 40.7 20 52.8 41.8 38.8 25 41.3 39.8 36.8 31.25 49.9 37.9 34.9 62.5 45.4 31.9 28.9 100 42.3 27.8 24.8 200 37.8 21.8 18.8 250 36.3 19.8 16.8 |
||||||||||||
| External O.D. | 6.3±0.4 mm | |||||||||||||
| Sheath | Surface | Clean,Frap,Satiation | ||||||||||||
| Material | PVC(complies RoHS) | |||||||||||||
| Color | According to the requires | |||||||||||||
| Letter height | 3.0±0.3mm | |||||||||||||
| Surface Printing | Color | Black | ||||||||||||
| Print error & Space | ≤±0.5%，1m | |||||||||||||
|
Core Color |
1 White Blue /Blue | 2 WhiteOrange /Orange | ||||||||||||
| 3 WhiteGreen /Green | 4 White Brown /Brown | |||||||||||||
| Packing | Wooden Tray & Carton | |||||||||||||
| Carton | 40.5*40.5*21cm | |||||||||||||
| dimension | ||||||||||||||
| Packing length | 305±1.5m | |||||||||||||
| Ripcord | Yes | Drain wire | Yes | |||||||||||
| Before Aging Tensile Strength (Mpa) ≥13.5 Elongation(%) ≥150 | ||||||||||||||
| Sheath Physical | Aging Period (℃×hrs) 100℃×24h×7d | |||||||||||||
| Properties | After Aging Tensile Strength(Mpa) ≥12.5 Elongation(%) ≥125 | |||||||||||||
| Cold bend(20±2℃×4h) 8×Cable O.D.，No visible cracks | ||||||||||||||
| 1.0250.0MHz Impedance ((Ω) 100±15 | ||||||||||||||
| Electrical | 1.0250.0MHz Delay Shew (ns/100m) ≤45 | |||||||||||||
| Characteristics | DC Resistance (Ω/100m) max 9.5 | |||||||||||||
| (20℃) | ||||||||||||||
| DC Conductor Resistance Unbalance (%) max | 5.0 | |||||||||||||
| Note：The fire retardant of the outer sheath should be comply with national standard. | ||||||||||||||
–
–
