Description
SF/UTP 4Pairs cablecategory 6PVC Sheath
| Revision Record | Approval Record | ||||||||||||
| Revision Status | Modify method | Modify No. | Modify Page | Effective Date | Modifier/ Date | Distribute No. | |||||||
| Prepare | |||||||||||||
| Review | |||||||||||||
| Approve | |||||||||||||
| Con tent of the Data Sheet | |||||||||||||
| Sheath Printing | It will be printed as customer’s requirement with batch produce. | ||||||||||||

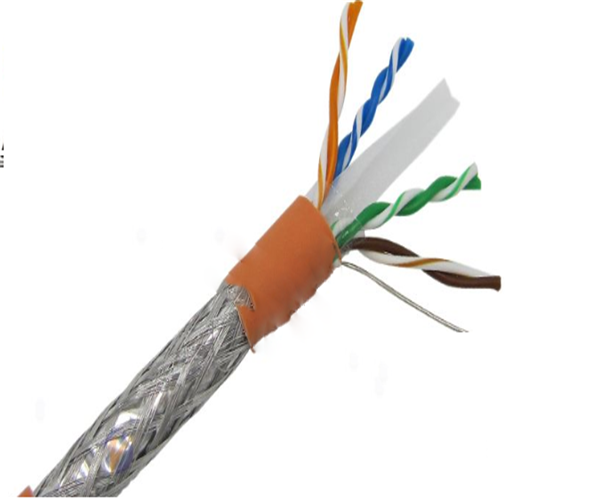

| Category | SF/UTPCAT64PPVC | White(blue)/blue White(oramge)/orange
PET
Jacket Aluminum Foil Braid Ripcord
White(brown)/brown White(green)/green |
|||||||||||
| Test Standard | ISO/IEC11801 、 TIA/568C.2 、 YD/T1019 | ||||||||||||
|
Conductor |
Material | SOLIDBare Copper | |||||||||||
|
Nom.O.D.(mm) |
0.570 |
up | +0.005 | ||||||||||
| down | 0.005 | ||||||||||||
|
Insulation |
Material | HDPE | |||||||||||
| Diameter | 1..09±0.04 mm | ||||||||||||
| Inner Screening
Material |
Aluminum Foil | Drain wire | No | ||||||||||
| Outer Screening Material | Tinned copper 0.10 mm | Coverage | ≥40% | Technical Performance (100m):
Frequency RL ATT(20℃) NEXT PHASE DELAY (MHz) ≥dB ≤dB ≥dB ≤ns 1 20.0 2.03 74.3 570.00 4.0 23.0 3.78 65.3 552.00 8.0 24.5 5.32 60.8 546.73 10.0 25.0 5.95 59.3 545.38 16.0 25.0 7.55 56.2 543.00 20.0 25.0 8.47 54.8 542.05 25.0 24.3 9.51 53.3 541.20 31.25 23.6 10.67 51.9 540.44 62.5 21.5 15.38 47.7 538.55 100 20.1 19.80 44.3 537.60 200 18.0 28.98 39.8 536.54 250 17.3 32.85 38.3 536.27
Frequency PSNEXT ELFEXT PSELFEXT (MHz) ≥dB ≥dB ≥dB 1 72.3 67.8 64.8 4 63.3 55.8 52.8 8 58.8 49.7 46.7 10 57.3 47.8 44.8 16 54.2 43.7 40.7 20 52.8 41.8 38.8 25 41.3 39.8 36.8 31.25 49.9 37.9 34.9 62.5 45.4 31.9 28.9 100 42.3 27.8 24.8 200 37.8 21.8 18.8 250 36.3 19.8 16.8 |
|||||||||
|
Sheath |
Thickness | 0.55±0.05 mm | |||||||||||
| External O.D. | 7.8±0.5 mm | ||||||||||||
| Surface | Clean | ||||||||||||
| Material | PVC ,Rohs | ||||||||||||
| Color | According to the requires | ||||||||||||
|
Surface Printing |
Letter height | 3.0±0.3mm | |||||||||||
| Color | Black | ||||||||||||
| Print error & Space | ≤±0.5%，1m | ||||||||||||
|
Core Color |
1 White(Blue )/Blue | 2 White(Orange )/Orange | |||||||||||
| 3 White(Green )/Green | 4 White(Brown )/Brown | ||||||||||||
| Packing | Wooden Tray & Carton | ||||||||||||
| Wooden Tray dimension | According to the requires | ||||||||||||
| Packing length | 305±1.0m | ||||||||||||
| Ripcord | Yes | ||||||||||||
|
Sheath Physical Properties |
Before Aging Tensile Strength (Mpa) ≥13.5
Elongation (%) ≥150 |
||||||||||||
| Aging Period (℃×hrs) 100℃×24h×7d | |||||||||||||
| After Aging Tensile Strength (Mpa) ≥12.5
Elongation (%) ≥125 |
|||||||||||||
| Cold bend (20±2℃×4h) 8×Cable O.D.，No visible cracks | |||||||||||||
|
Electrical Characteristics (20℃) |
1.0250.0MHz Impedance (Ω) 100±15 | ||||||||||||
| 1.0250.0MHz Delay Shew (ns/100m) ≤45 | |||||||||||||
| unbalancedtoground capacitance (pf/100m) max 330 | |||||||||||||
| DC Resistance (Ω/100m) max 9.38 | |||||||||||||
| DC Conductor Resistance Unbalance (%) max 5.0 | |||||||||||||
| Note：The fire retardant of the outer sheath should be comply with national standard 。 | |||||||||||||
–
–
