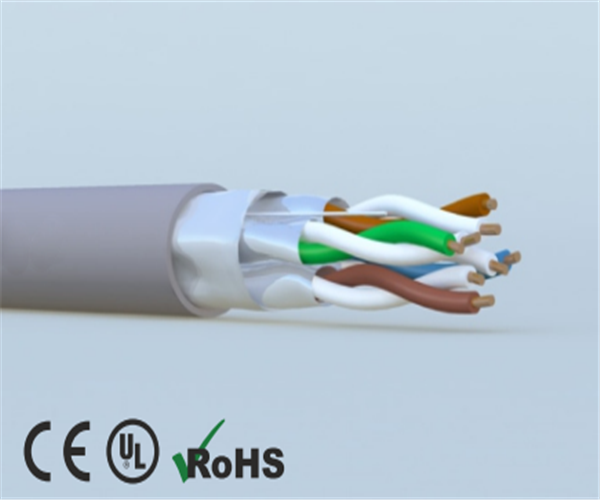

CAT6 FFTP CABLE

Revision Record

Approval Record

Revision Status

Modify method

Modify No.

Modify Page

Effective Date

Modifier/ Date

Distribute No.

Prepare

Review

Approve

Content of the Data Sheet

Sheath Printing

It will be printed as customer’s requirement with batch produce.

Category

F / FTP CAT6­4P­PVC

White/orange

White/blue

Aluminum Foil

Jacket Rip­cord

Drain wire

White/brown White/green

Test Standard

ISO/IEC11801、 TIA­568­C.2 YD/T1019­2001

Conductor

Material

Solid­Bare Copper

Nom.O.D.(mm)

0.570

up

+0.005

down

­0.005

Insulation

Material

Skin­foam­skin PE

Diameter

1.360±0.05 mm

Screening Material

Aluminum Foil

Thickness

0.60±0.05mm

Technical Performance (100m):

Frequency   RL ATT(20℃) NEXT PHASE DELAY

(MHz)  ≥dB  ≤dB  ≥dB   ≤ns

1        20.0   2.03   74.3   570.00

4.0     23.0   3.78   65.3   552.00

8.0     24.5   5.32   60.8   546.73

10.0   25.0   5.95   59.3   545.38

16.0   25.0   7.55   56.2   543.00

20.0   25.0   8.47   54.8   542.05

25.0   24.3   9.51   53.3   541.20

31.25   23.6   10.67   51.9   540.44

62.5   21.5   15.38   47.7   538.55

100   20.1   19.80   44.3   537.60

200   18.0   28.98   39.8   536.54

250   17.3   32.85   38.3   536.27

Frequency PSNEXT ELFEXT PSELFEXT

(MHz) ≥dB   ≥dB   ≥dB

1         72.3   67.8   64.8

4         63.3   55.8   52.8

8         58.8   49.7   46.7

10       57.3   47.8   44.8

16       54.2   43.7   40.7

20       52.8   41.8   38.8

25       41.3   39.8   36.8

31.25  49.9   37.9   34.9

62.5    45.4   31.9   28.9

100    42.3   27.8   24.8

200    37.8   21.8   18.8

250    36.3   19.8   16.8

External O.D.

7.6±0.4 mm

Sheath

Surface

Clean,Frap,Satiation

Material

PVC(complies RoHS)

Color

According to the requires

Letter height

3.0±0.3mm

Surface Printing

Color

Black

Print error & Space

≤±0.5%，1m

Core Color

1 White /Blue

2 White /Orange

3 White /Green

4 White /Brown

Packing

Wooden Tray & Carton

Wooden Tray

According to the requires

dimension

Packing length

305±1.5m

Rip­cord

Yes

Drain wire

Yes

Before Aging   Tensile Strength (Mpa) ≥13.5

Elongation(%) ≥150

Sheath Physical

Aging Period (℃×hrs) 100℃×24h×7d

Properties

After Aging  Tensile Strength(Mpa) ≥12.5

Elongation(%) ≥125

Cold bend(­20±2℃×4h) 8×Cable O.D.，No visible cracks

1.0­250.0MHz Impedance (Ω) 100±15

Electrical

1.0­250.0MHz Delay Shew (ns/100m) ≤45

unbalanced­to­ground capacitance (pf/100m) max 330

Characteristics

DC Resistance (Ω/100m) max 9.38

(20℃)

DC Conductor Resistance Unbalance (%) max 5.0

Note：The fire retardant of the outer sheath should be comply with national standard.
