Description

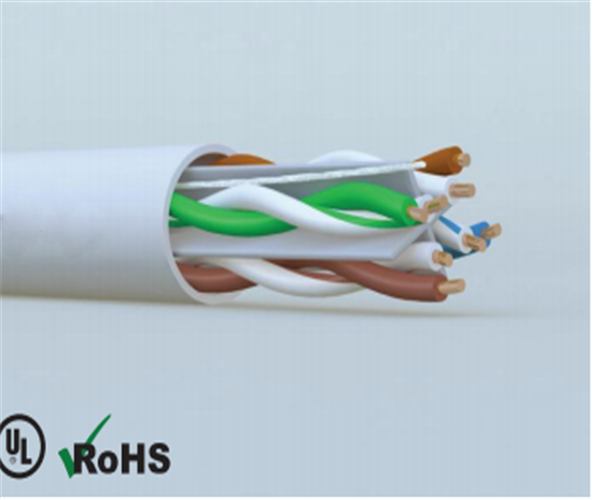

U/UTP 4Pairs cable-category 6-CMP PVC Sheath
| Date | Author | Review | Approve | Version | Revision Declaration | |||||
| 2014-06-04 | Caihanglie | Nidonghua | Wangfuzhu | A0 | ||||||
| Content of the Data Sheet | ||||||||||
| Sheath Printing | It will be printed as customer’s requirement with batch produce. | |||||||||
| Customer reference |
|
|||||||||
| Category | U-UTP-CAT6-4P- CMP PVC | |||||||||
| Test Standard | ISO/IEC11801、ANSI/TIA-568-C.2 、YD/T1019 | |||||||||
| 1. Conductor | Material | SOLID-Bare Copper | ||||||||
| Nom. O.D. (mm) | 0.565 | Up | +0.005 | |||||||
| Down | -0.005 | |||||||||
| Material | FEP | |||||||||
| Diameter | 1.01±0.04mm | |||||||||
| Color | 1.Blue, White | 2.Orange,White | ||||||||
| 3.Green,White | 4.Brown, White | Technical Performance (100m):
Frequency RL ATT NEXT DELAY (MHz) ≥dB ≤dB ≥dB ≤ns 1 20.0 2.03 74.3 570.00 4.0 23.0 3.78 65.3 552.00 8.0 24.5 5.32 60.8 546.73 10.0 25.0 5.95 59.3 545.38 16.0 25.0 7.55 56.2 543.00 20.0 25.0 8.47 54.8 542.05 25.0 24.3 9.51 53.3 541.20 31.25 23.6 10.67 52.0 540.44 62.5 21.5 15.38 47.4 538.55 100 20.1 19.80 44.3 537.60 200 18.0 28.98 39.8 536.54 250 17.3 32.85 38.3 536.27
Frequency PSNEXT ELFEXT PSELFEXT (MHz) ≥dB ≥dB ≥dB 1 72.3 68.0 65.0 4 63.3 56.0 53.0 8 58.7 49.9 46.9 10 57.3 48.0 45.0 16 54.2 43.9 40.9 20 52.8 42.0 39.0 25 51.3 40.0 37.0 31.25 49.9 38.1 35.1 62.5 45.4 32.1 29.1 100 42.3 28.0 25.0 200 37.8 22.0 19.0 250 36.3 20.0 17.0
|
||||||||
| 3. Filling | Plastic Separator : FEP | |||||||||
| 4. Rip-cord | Yes | Drain wire | No | |||||||
| 5. Sheath | Thickness | 0.43±0.05 mm | ||||||||
| External O.D. | 5.8±0.4 mm | |||||||||
| Surface | Clean,Frap,Satiation | |||||||||
| Material | CMP PVC (complies RoHS ) | |||||||||
| Color | Multiple | |||||||||
| Surface Printing | Letter height | 3.0±0.3mm | ||||||||
| Color | Black | |||||||||
| Print error & Space | ≤±0.5%，1m | |||||||||
| Packing | Carton, pallet | |||||||||
| Carton dimension | According to the requires | |||||||||
| Packing length | 305±1.5m | |||||||||
| Sheath
Physical Properties |
Before Aging Tensile Strength (Mpa) ≥13.5
Elongation (%) ≥150 |
|||||||||
| Aging Period (℃×hrs) 100℃×24h×7d | ||||||||||
| After Aging Tensile Strength (Mpa) ≥12.5
Elongation (%) ≥125 |
||||||||||
| Cold bend (-20±2℃×4h) No visible cracks | ||||||||||
| Electrical Characteristics
(20℃) |
1.0-500.0MHz, Characteristic impedance (Ω) 100±15 | |||||||||
| 1.0-500.0MHz, Delay Shew 20℃(ns/100m) ≤45 | ||||||||||
| DC Resistance 20℃(Ω/100m) max 9.38 | ||||||||||
| DC Conductor Resistance Unbalance (%)max 5.0 | ||||||||||
| Note：The fire retardant of the outer sheath should be comply with national standard. | ||||||||||
–
–
